MEP Modeler 20

The Graphisoft MEP Modeler™ is an add-on to Archicad®. Firms using Archicad can use the MEP Modeler to create and edit 3D model-based MEP networks (ductwork, pipework and cabling) and coordinate them within the Archicad Virtual Building. The MEP Modeler uses a familiar interface and tools integrated right in the Archicad environment.

System Requirements More about MEP Modeler

Installation of MEP Modeler for Archicad 20:

1

Before the installation please check if you have Archicad 20 installed on your computer and that it is not running.If you run Archicad:

  • in DEMO mode, you can try MEP modeler with the same restriction applied to Archicad Demo mode: save, export or teamwork options are disabled;
  • with an education license, you have to use your your Archicad serial number and the corresponding UserID upon MEP Modeler installation;
  • with a trial license, your Archicad trial serial number and UserID must be entered upon installation so that you can use MEP Modeler during your trial period;
  • with an Archicad commercial license but without an MEP Modeler license, then you will have to run Archicad in DEMO mode so that you can try MEP Modeler.

2

Locate the desired language and OS version in the list below (MEP Modeler Download Packages) and download the installer. Further language versions are uploaded continually.

INT USA UKI GER FRA RUS AUS POL SPA BRA FIN ITA JPN CZE POR GRE NOR TAI CHI
Download Language Windows Mac OSX User Guide Last modified
MEP Modeler for Archicad 20   72.9 MB   72.3 MB Jun 28, 2016
MEP Modeler for Archicad 20

  74.6 MB

   74.1 MB Jun 28, 2016
MEP Modeler for Archicad 20   72.6 MB   72.1 MB Jun 28, 2016
MEP Modeler for Archicad 20   75.2 MB   74.6 MB Jun 30, 2016
MEP Modeler for Archicad 20   75.2 MB   75.7 MB July 4, 2016
MEP Modeler for Archicad 20   73.7 MB   73.2 MB July 20, 2016
MEP Modeler for Archicad 20   66.0 MB   13.0 MB July 22, 2016
MEP Modeler for Archicad 20   74.5 MB   74.0 MB July 29, 2016
MEP Modeler for Archicad 20   74.9 MB   74.7 MB Aug 12, 2016
MEP Modeler for Archicad 20   76.5 MB   76 MB Aug 17, 2016
MEP Modeler for Archicad 20   74.7 MB   72.8 MB Sept. 12, 2016
MEP Modeler for Archicad 20   74.2 MB   72.2 MB Sept. 19, 2016
MEP Modeler for Archicad 20   75.8 MB   73.8 MB Sep 28, 2016
MEP Modeler for Archicad 20   74.9 MB   72.9 MB Oct 26, 2016
MEP Modeler for Archicad 20   76.5 MB   76.0 MB Oct 28, 2016
MEP Modeler for Archicad 20   74.7 MB   72.8 MB Nov 7, 2016
MEP Modeler for Archicad 20   79.4 MB   77.4 MB Nov 11, 2016
MEP Modeler for Archicad 20   74.3 MB   72.4 MB Dec 2, 2016
MEP Modeler for Archicad 20   74.3 MB   72.4 MB Dec 9, 2016
3

When installing MEP Modeler, you must be logged on as a member of the Administrator Group. If your have a valid Archicad commercial license, unplug the software key from your computer.

Start the installer. The installer wizard will guide you through the installation process. When prompted about the installation options:

  • in DEMO mode, choose the first option: “I have a hardware or software key for MEP Modeler”;
  • with an education license, choose the second option: “I have a Serial number for MEP Modeler”;
  • with a trial license, choose the second option “I have a Serial number for MEP Modeler”;
  • with an Archicad commercial license but without an MEP Modeler license, you should be running Archicad in DEMO mode and choosing the first option accordingly.

After installing MEP Modeler add-on properly, you can find a PDF version of the MEP Modeler User Guide in the ‘Archicad/Documentation’ folder.

4

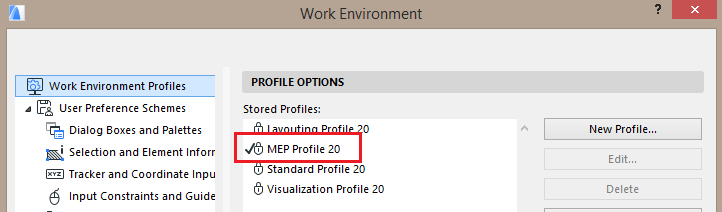

Launch Archicad, then from the main menu, select Options >> Work Environment >> Work Environment Profiles:

From the Profile Options, choose MEP Profile 20. For further information, consult the MEP FAQ. The MEP Modeller plugin can be tested with all Archicad license types: commercial, demo, trial and educational. Demo licenses have the limitation of not being able to save and copy work.

5

If you decide to purchase an MEP Modeler license, please contact your local Archicad reseller. Product licenses may be uploaded to the Archicad protection key via the internet. After obtaining the license to the MEP Modeler you have already installed, it is going to work under your licensed Archicad 20 with full functionality.

Notes on Uninstalling:

Windows:
Go to the Windows “Control Panel” and select “Programs and Features” to remove all MEP Add-on components from your computer. You can also browse to your Archicad folder and execute the uninstaller in the Uninstall.MEP subfolder.

Mac OS X:
Browse to your Archicad folder and execute the uninstaller in the Uninstall.MEP subfolder. This will start the uninstaller, which will remove all MEP components from your computer.

Previous MEP Modeler versions
