MEP Modeler Downloads

The Graphisoft MEP Modeler™ is an add-on to Archicad®. Firms using Archicad can use the MEP Modeler to create and edit 3D model-based MEP networks (ductwork, pipework and cabling) and coordinate them within the Archicad Virtual Building. The MEP Modeler uses a familiar interface and tools integrated right in the Archicad environment.

Installation of MEP Modeler for Archicad 19:

1
Before the installation please check if you have Archicad 19 installed on your computer and that it is not running.
If you run Archicad:

  • in DEMO mode, you can try MEP modeler with the same restriction applied to Archicad Demo mode: save, export or teamwork options are disabled;
  • with an education license, you have to use your your Archicad serial number and the corresponding UserID upon MEP Modeler installation;
  • with a trial license, your Archicad trial serial number and UserID must be entered upon installation so that you can use MEP Modeler during your trial period;
  • with an Archicad commercial license but without an MEP Modeler license, then you will have to run Archicad in DEMO mode so that you can try MEP Modeler.
2

Locate the desired language and OS version in the list below (MEP Modeler Download Packages) and download the installer. Further language versions are uploaded continually.

Download Language Windows Mac OSX Last modified
MEP Modeler for Archicad 19   INT   64.4 MB   11.9 MB Jun 14, 2015
MEP Modeler for Archicad 19   GER   66.0 MB   13.0 MB Jul 1, 2015
MEP Modeler for Archicad 19   USA   66.5 MB   13.6 MB Jun 14, 2015
MEP Modeler for Archicad 19   UKI   66.5 MB   13.6 MB Jun 14, 2015
MEP Modeler for Archicad 19   FRA   66.5 MB   13.6 MB Jun 29, 2015
MEP Modeler for Archicad 19   AUS   66.0 MB   13.0 MB July 7, 2015
MEP Modeler for Archicad 19   RUS   65.5 MB   12.6 MB Feb 1, 2016
MEP Modeler for Archicad 19   BRA   65.8 MB   12.9 MB Feb 1, 2016
MEP Modeler for Archicad 19   SPA   64.5 MB   11.6 MB Feb 1, 2016
MEP Modeler for Archicad 19   FIN   66.5 MB   13.6 MB Feb 1, 2016
MEP Modeler for Archicad 19   JPN   65.9 MB   13.0 MB Sep 10, 2015
MEP Modeler for Archicad 19   ITA   64.9 MB   12.0 MB Feb 1, 2016
MEP Modeler for Archicad 19   CZE   65.1 MB   12.1 MB Feb 1, 2016
MEP Modeler for Archicad 19   POR   64.9 MB   12.0 MB Feb 1, 2016
MEP Modeler for Archicad 19   GRE   65.2 MB   12.3 MB Feb 1, 2016
MEP Modeler for Archicad 19   CHI   65.1 MB   12.1 MB Dec 3, 2015
MEP Modeler for Archicad 19   TAI   67.7 MB   10.4 MB Dec 2, 2015

3

When installing MEP Modeler, you must be logged on as a member of the Administrator Group. If your have a valid Archicad commercial license, unplug the software key from your computer.

Start the installer. The installer wizard will guide you through the installation process. When prompted about the installation options:

  • in DEMO mode, choose the first option: “I have a hardware or software key for MEP Modeler”;
  • with an education license, choose the second option: “I have a Serial number for MEP Modeler”;
  • with a trial license, choose the second option “I have a Serial number for MEP Modeler”;
  • with an Archicad commercial license but without an MEP Modeler license, you should be running Archicad in DEMO mode and choosing the first option accordingly.
4

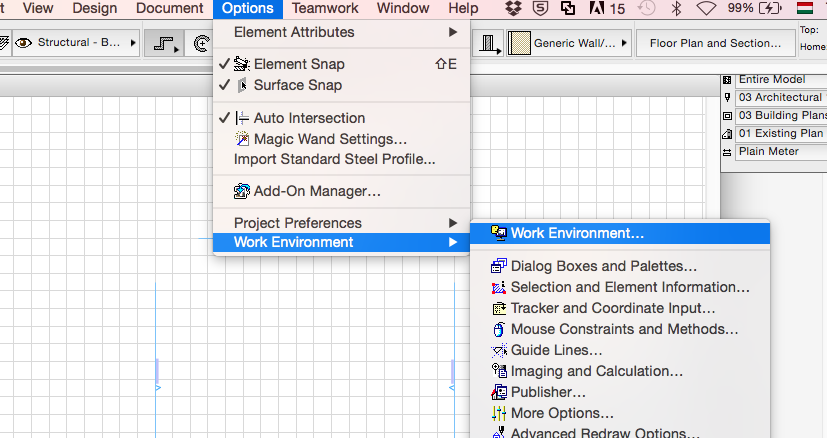

Launch Archicad, then from the main menu, select Options >> Work Environment >> Work Environment:

In the appearing dialog box, choose MEP. For further information, consult the MEP FAQThe MEP Modeller plugin can be tested with all Archicad license types: commercial, demo, trial and educational. Demo licenses have the limitation of not being able to save and copy work.

5

If you decide to purchase an MEP Modeler license, please contact your local Archicad reseller. Product licenses may be uploaded to the Archicad protection key via the internet. After obtaining the license to the MEP Modeler you have already installed, it is going to work under your licensed Archicad 19 with full functionality.
